Technical Specification

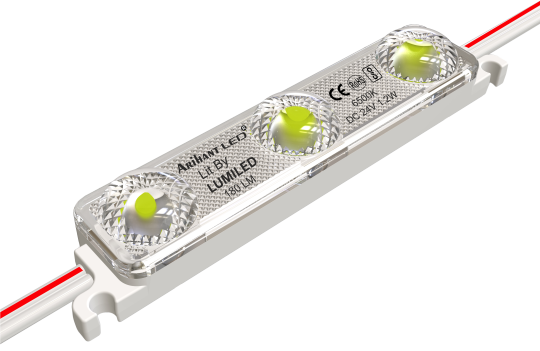

Model ARI-LM-BL-24-1.2W
LED (Chip) LUMILED
Color (CCT) 3000K, 4000K, 6500K, 10000K
Operating Power DC 24 V
Power Dissipation 1.2 W
Luminous Flux (lm) 180 lm
CRI 85 %
View Angle 180°
Dimension (mm) 70*15*11
Operating Temperature -30 ~ 70
Max Series Connection 20 Modules
Waterproof IP 67
Warranty 5 Years
