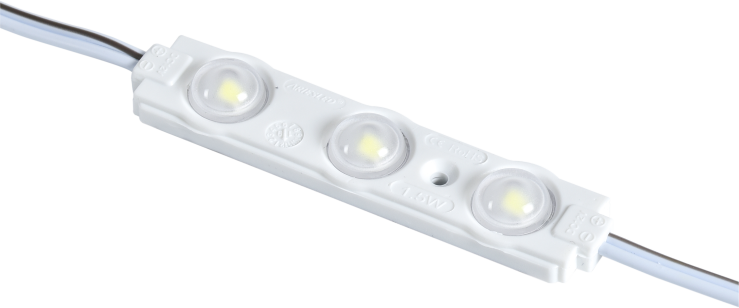

ARIESLED PREMIUM 3 LED MODULE

Features

  • Constant Current Technology
  • Injection Molding Process With Opti Lens
  • High Efficiency Chip, High Brightness Reliability
  • Energy Saving, Environment Friendly
  • Application : Narrow, Big Size Channel Letters, light Box
.

Technical Specification



Model ARIES 2835 - 3 LED
Product Type Opti Lens
LED (Chip) Taiwan Chip
Color (CCT) 3000K, 4000K, 6500K, 10000K, RED, GREEN, BLUE, YELLOW
Operating Power DC 12 V
Power Dissipation 1.5/1 W
Luminous Flux (lm) 120 lm
View Angle 160°
Dimension (mm) 68*15*7.5
Operating Temperature -20~ 60
Max Series Connection 20 Modules
Waterproof IP 65
Warranty 3 Years
